Truck Home EX63























Amazing truck house from UniCat again.

Chassis
  • MAN M 2000 4x4
  • Crew cab with 2 seats + 3-seater bench
  • Wheel base 5125 mm (16' 10")
  • Engine performance 206 kW/280 hp, Euro 3
  • ZF 16-speed manual transmission
  • All wheel drive with center differential lock
  • Differential locks for front and rear axle
  • Parabolic leaf springs
  • Tires 14.00 R 20 Michelin XZL, tubeless
  • Tire pressure regulating system
  • 2 chamber fuel tanks, capacity 600 liters (158 US gallons)
  • Fuel prefilter with water seperator
  • Car alarm system
  • 2 air suspended seats and bench with 3 seats, convertible to bed
  • Satellite navigation system (GPS)
  • Back eye camera
  • Integrated airconditioner
  • Roof rack with branch guard
  • Crane for loading of spare wheel
  • Searchlights left and right
  • Truck horns
  • Xenon high beam lights
Body
    Frame assembly
  • 3 point kinematic attachment with main and flex mounts
    for stress free body coupling to the torsion elastic chassis frame

    Body unit construction
  • Self supporting UNICAT sandwich plate panels of fibre glass composite
  • Panel connections made by adhesive bond to custom extrusions
    eliminates metallic heat conduction paths
  • Matched thermal coeficients of expansion prevent distortion with changes in temperature
  • Wall thickness 60 mm (2.36") with polyurethane foam insulation, 3 mm (0.12") FRP outer surface, 2 mm (0.08") FRP inner surface, insulation rating 0.44 W/m2 K (0.078 Btu/ft2 hr °F)
  • Bottom panel with integrated welded steel frame and surfaces of FRP

    Access to drivers cab
  • Highly flexible waterproof bellows coupling
  • Sliding door to close passage way

    Entrance door and storage compartment doors
  • UNICAT entrance door and storage compartment doors
    constructed of fibreglass composite plates and frames
  • Thickness of doors 60 mm (2.36")
  • Double sealed doors with heavy duty locks with seal compression
  • Stainless steel hinges throughout
  • Additional retractable bolts at top and bottom of entrance door
  • Safety cylinder locks all keyed alike

    Windows and skylights
  • Burglarproof, scratchproof top hinged sidelights
  • Double insulated thermal window glass
  • Shutters and moskito nets

    Lifting roof
  • Expedition proofen UNICAT lifting roof with electric drive mechanism
  • Well insulated, expedition proven and maintenance free
Interior layout
    Inner dimensions of the cabin
  • Length 6180 mm (20' 3"), width 2360 mm (7' 9"), height 2020 mm (6' 7")

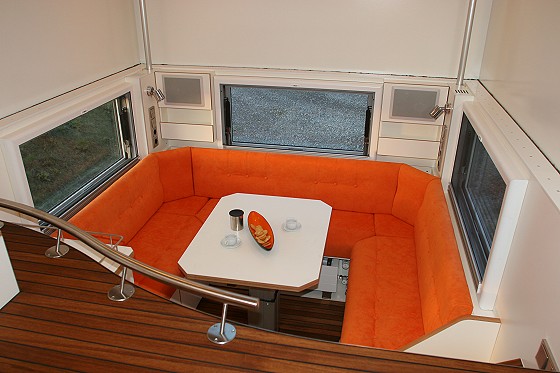

    Seating unit
  • U-shaped seating unit with adjustable foldable table on pedastel in the rear of the cabin
  • Seating unit converts to additional double bed

    Front seating unit
  • Seating unit with swivelling table
  • Seating unit converts to additional double bed

    Beds
  • Double bed with comfortable matresses in lifting roof area
  • Size: 1800 x 2000 mm (5' 11" x 6' 7")
  • Front seating area converts to double bed
  • 3rd bed to be lowered from the ceiling in front area

    Sanitary room
  • Separate shower and toilet room with doors, to seperate from livingroom
  • Aluminium bowl lavabo
  • Hanger cupboard with mirror
  • Also usable as drystorage due to its own radiators

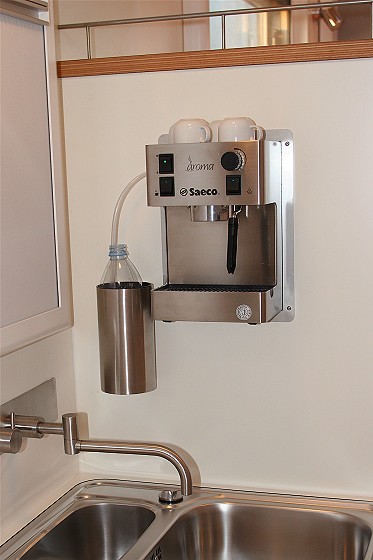

    Kitchen
  • Stainless steel countertop with integrated sink
  • Single handle faucet for warm and cold water
  • Soap dispenser
  • 3-flame gas stove
  • Conventional/microwave oven
  • 2 x 120 l (26 gallon) fridge with ***-freezer
  • Kitchen closet with drawers

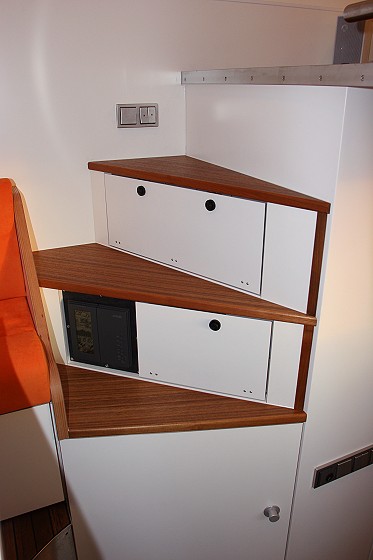

    Storage
  • Storage space in the seating benches
  • 2 wardrobes
  • Large outside storage compartments
  • Aluminium exterior storage boxes

    Workmanship
  • All furniture is custom built to the highest cabinetmaking standard,
    made of wood core plywood using heavy duty locks and hinges
  • Materials and finishes may be specified by customer

    Layout
  • Design and color of floor, walls and ceiling may be chosen by the customer
  • Walls and ceiling are painted with multiple coats
  • Upholstery made of fabric, leather or ALCANTARA
Technical equipment
    Electrical equipment
  • Custom control panel to control powermanagement and liquide storages
  • Battery main switch, savety cutout, fault current breaker
  • DC power supply by AGM battery bank, automatic I-U regulated alternator
    and AC automatic I-U shore charger with cell temperature sensing
  • Battery capacity: 24 V – 630 Ah
  • Alternator charge rate: 28 V – 80 A
  • Shore charge rate: 28 V – 50 A
  • Inverter 24 V/230 V, max. output 6 kW
  • International shore power connectors 90-260 V AC (45-65 Hz)
  • Power plugs for 12 V DC, 24 V and 230 V AC
  • Solar system

    Generator
  • Watercooled Fischer-Panda diesel generator with 1-cylinder diesel engine
  • Cooling-water circulation connected to the engine cooling system
  • Performance: 5 kW
  • Water cooled muffler

    Musik system / TV / video
  • Music installation with CD-changer
  • Sound system
  • DVD player
  • TV satellite receiver

    Lighting
  • Integrated low voltage XELOGEN lights
    above the table, kitchen, hall way, shower, storage area and lifting roof
  • Lights for outside storage compartments
  • Reading lights in bed and seating area

    Water supply
  • 700 l (185 gallon) freeze-proof drinking water tanks
  • 40 l (8.8 gallon) hot water heat-exchanger
  • Freeze proof waste water tank, capacity 120 liters (32 US gallons)
  • Water faucets in both bath and kitchen have removable sprayers
  • All components are built due to highest household quality standards
  • All plumbing is insulated to prevent freezing
  • City water connector and outside shower
  • Water filtration system

    LPG supply
  • 2 x 11 kg gas bottles

    Toilet
  • Porcelain-vacuum toilet with water flushing
  • Freeze proof sewage holding tank

    Heating system
  • Diesel/electric powered warm water central heating (9 kW),
    with engine preheating system and drivers cab preheating system
  • High radiant heat share due to radiators in living area
    and towel radiator in bath and shower area
  • Antifrost system

    Others
  • Integrated airconditioner, performance 5 kW (17,000 Btu),
    powered by the generator or shore power
  • Safe
  • Miele washer/dryer
  • Electrically operated motorbike rack for 1 motorbike
General information
    GVWR
  • 14,900 kg (32,840 lbs)

    Overall dimensions
  • Length 9082 mm (29' 10"), width 2480 mm (8' 1"), height 3860 mm (12' 8")
  • Additional length of motorbike rack: 1000 mm (3' 3")
